NIKITAMA@FLOODGATE : TO PROTECT YOUR BUILDING FROM FLASH FLOODING

WELCOME to PT. Prima Springs Mfg – Bandung

Prima Springs Mfg is a national private company of Indonesiathat located in Bandung – Jawa Barat.  Pioneered by many experienced engineers, our company have further developed and have capabilities to manufacture  in a wide range of flood protection system ( flood barrier), vibration mounting for building, etc. And in the recent time we are responsible to handle many projects of flood gate ( flood barrier) from many  buildings.

Our company is very experienced in building protection system from flooding in Indonesia, and the first company that pioneered the development of flood protection management system. Our product floodgate is  to protect all people and your assets from flood damage and making them feel safe and comfortable in rainstorm.

Don’t let the floods hit your property which will destroy all things what’s in it.

Nikitama@floodgate is your solution to protect your properties (office building, your homes, industrial estate,  airport area, hospital,  residential area) from flash flooding …

Don’t hesitate to contact us for consultation +628122320677, +628112240216

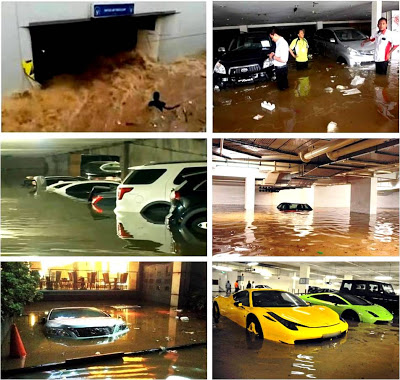

Protect  your building from eventually  basement flash flooding that can occur suddenly

Flooding in Residential Area

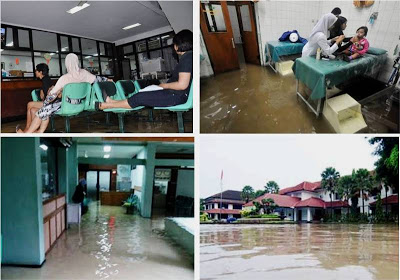

Flooding in Hospital

Do not let the floods hit your property, which will destroy all things what’s in it.

Talk to us, and we will provide the best solution for you !!!

We offer you  a full design, manufacture and installation service for all types and sizes of flood protection system

A rapid deployment flood defense system

Flood Protection Gate or Nikitama@Floodgate  is a rapid deployment flood defense system to protect people and property (in private home or commercial and office building) , residential properties and whole communities, as well as industrial or other strategic areas from inland waterway floods caused by heavy rainfall,  extreme high tides, tsunamis, or failure of dams.

Nikitama@Floodgate  is constantly ready for uses in a flash flood situation, easy and quick installation less than  2 minutes.   The Product can be designed and manufactured in any type, length and height according to costumers needs,equally suited to the old existing structures or  new construction,  for old or new building.

TYPES (MODEL) OF NIKITAMA@FLOODGATE

We have 3 types (model) of  flood protection system in accordance with the user’s needs  and  fit to the conditions of the building design structure. The product selection of floodgate is based on the length of the gate to be protected and the free space for the gate panel movement.   We offer to you  in  3 types of model,  as bellow :

A. SLIDING FLOODGATE

Sliding floodgate is designed as a gateway in general. It has  ability to move sliding horizontally to the right and to the left.  And the door panels can go up and down vertically to open and close tightly the brunt of flood water.

It will always be attached to the gateway system which has two functions : as a gate and as a flood protection door.  Quick and easy operation less than 2 minutes by one person.

Horizontally sliding floodgate are available for locations where side-hinged or flip-up gates will not fit and removable floodgate are not desired. Horizontal sliding gates are typically manually operated with the panel sliding on rollers and tracks. The floodgate panel can sliding vertically :  lifted and lowered with mechanical system. Each of our sliding floodgates is individually designed for the specific customer’s requirements.

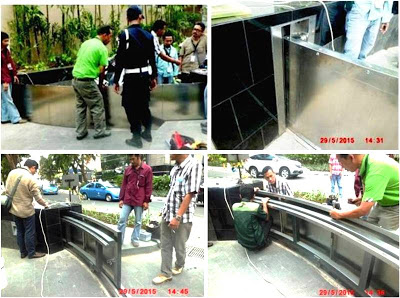

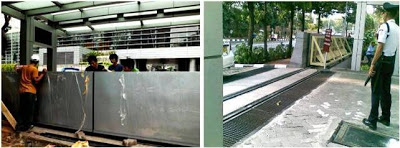

Sliding Floodgate Installation in Office Center  and Commercial Building   in JL Gatot Subroto – Jakarta

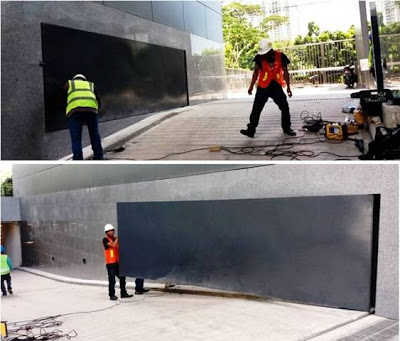

Sliding Floodgate Installation in Office Center  and Commercial Building  in JL Jend Sudirman – Jakarta

BENEFITS /ADVANTAGES OF SLIDING FLOODGATE

• Efficient use of space with no ‘swing area’ as with traditional flood gates (use little space).
• Can be designed for flood protection heights up to 5m and spans up to 7m or over .
• Simple one person operation.
• Ability to power / automate closing and opening.
• Can be designed to fit in with building aesthetic.
• Always on-site ready to be deployed.

COMPONENT

Sliding floodgate, consist of the following components:

• Door Panel (floodgate panel) & Carrier Frame
• Cantilever Pillar
• Ground  Fitting (threshold) and Sliding Tracking Rail
• Cover Frame of Door Panel
• Mechanical System of  Up-Down  Panel Door
• Roller  & Rubber Sealing (Gasket )
• Latch (Locking System) Latching designed for simple and  quick installation.

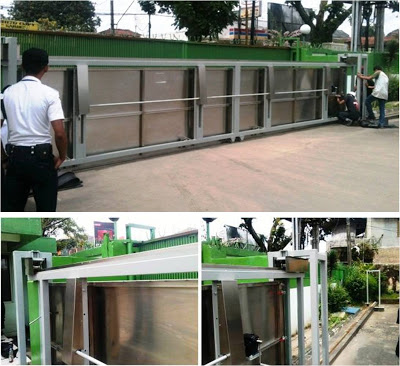

Sliding Floodgate Installation in Industrial Estate  – Factory Building & Warehouse – In Banjaran – Bandung

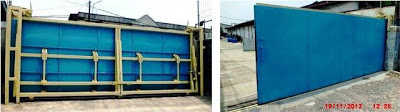

Floodgate Installation in Industrial Estate – Warehouse – In Muara Angke  – Jakarta

B. HINGE (SWING) FLOODGATE
It’s a flood protection system that is designed as like an opened and closed the door, which is based on the strength of the precision hingeas the axis swivel base point. Equipped with a leak-proof protection system by rubber seal, and operated with a simple locking system that is practical and fast .

Hinge (Swing)  Floodgate Installation in Office Center  and  Commercial Building in JL Jend Sudirman – Jakarta

COMPONENT

Hinged (Swing) floodgate or flood barrier, consist of the following components:

• Door Panel (floodgate panel)
• Precision Hinge
• Jamb (Side Support Frame in Left and right side)
• Threshold (Steel Plate Bottom Fitting)
• Rubber Sealing (Gasket)
• Locking System ( Latch)
• Roller (optional), and all necessary fastenings and accessories required to complete the installation.

Hinged floodgate usually used for a building or property that has a wide space in back or front side for swing movement of the door panel.

C. REMOVABLE (STAND ALONE) FLOODGATE

It’s designed stand alone and separated from the gateway construction . Installed at the time of the flood will come; and remove at the time of the floods would subside.

Our removable floodgate  is individually designed for the specific customer’s requirements. Doorpanels will be installed at the time of floods, and is released when the flood is over. This type of flood protection system usually are used for property .  It’s  also a simple operation by one person.

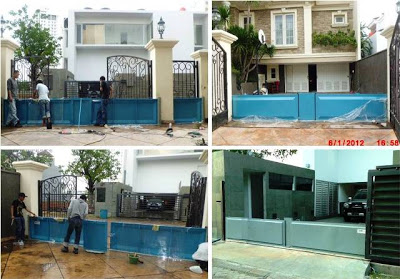

Removable (Stand Alone)  Floodgate Installation in Private Home – Kemang Residence – Jakarta

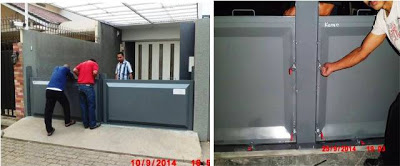

Installation of Removable (Stand Alone)  Floodgate  in Private Home – Pantai Mutiara– Jakarta

Installation of Removable (Stand Alone)  Floodgate  in Industrial Estate– Pulogadung– Jakarta

HOW TO ORDER THE FLOODGATE

Please don,t hesitate to contact us, we will serve you with pleasure. And please give us the first data as bellow :

If you  need a  further information regarding to our products and services,

and to get free technical assistance, please contact us directly.
Hotline Service :  +628122320677,  +628112240216

Head Office & Workshop :

Jl. Panghegar No. 21 Gede Bage – BANDUNG 40614   WEST JAVA – INDONESIA

Phone :  +62 22 783 3353,  +62 8122320677, +628112240216

Fax : +62 22 783 3353

Email : primasprings@yahoo.co.id   /  terzaba@gmail.com
